An American-engineered torque wrench series, designed for the industries that demand zero tolerance for error: oil & gas, petrochemicals, mining, aerospace, military, railways, power generation, metallurgy, and construction machinery.

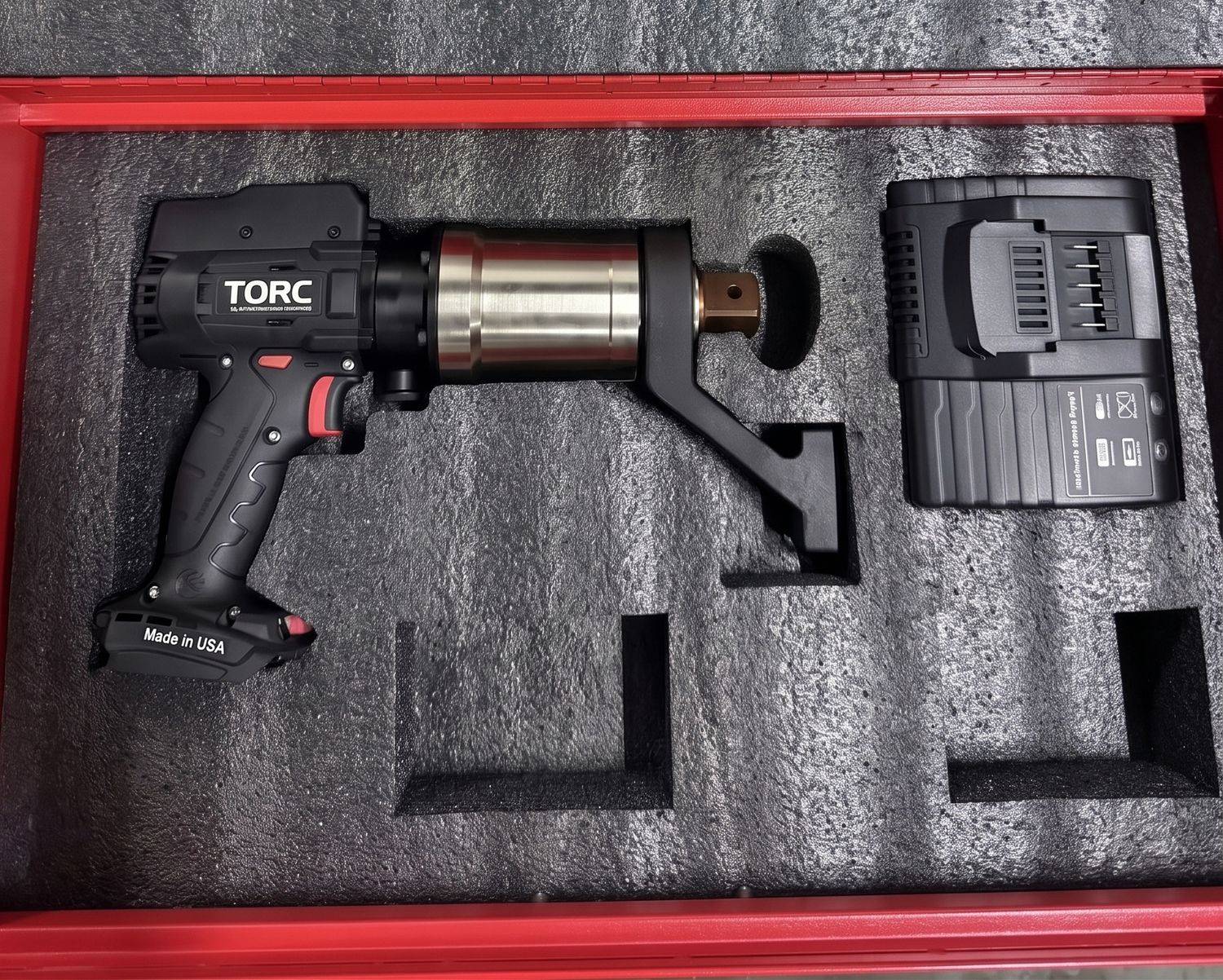

A cordless, digital display, rechargeable torque wrench designed for professional-grade bolt tightening and removal — built to perform in remote and demanding field environments.
| Battery | 18V, 5.0Ah lithium-ion, with live power display |
| Torque Accuracy | ±5% |
| Torque Adjustment | 1 Nm increments |
| Display | Full-color LCD, real-time feedback |
| Motor | Advanced brushless technology |
| Data Storage | Up to 2,000 operation records |
| Charging Time | 60 minutes · two batteries & fast charger included |
| Handle | 360° rotating with mechanical locking |
Core features: smart torque control via microcontroller, intelligent battery monitoring with automatic shutdown alerts, multi-level password protection, bolt counting, OK/NG pass-fail judgment, and combined torque + angle control.
Request TBT Series PricingTen torque ranges, one platform. Every TBT model shares the same digital control, battery system, and build quality — sized to the job.
| Model | Torque (Nm) | C Drive | D (mm) | L (mm) | Free Speed (RPM) | Weight (kg) |
|---|---|---|---|---|---|---|
| TBT-002 | 80–200 | 3/4″ | 53 | 238 | 15 | 2.3 |
| TBT-007 | 175–700 | 3/4″ | 53 | 255 | 7 | 2.8 |
| TBT-016 | 350–1,600 | 1″ | 75 | 290 | 5 | 4.9 |
| TBT-020 | 450–2,000 | 1″ | 75 | 295 | 4.5 | 4.9 |
| TBT-025 | 600–2,500 | 1″ | 88 | 360 | 3.5 | 6.9 |
| TBT-040 | 950–4,000 | 1″ | 88 | 378 | 2.5 | 7.4 |
| TBT-080 | 2,000–8,000 | 1-1/2″ | 129 | 420 | 1.5 | 14.5 |
| TBT-100 | 2,500–10,000 | 1-1/2″ | 129 | 426 | 1.5 | 14.7 |
| TBT-150 | 4,000–15,000 | 2.5″ | 169 | 313 | 0.5 | 43 |
| TBT-200 | 5,000–20,000 | 2.5″ | 169 | 313 | 0.4 | 45 |
| Model | Torque (ft-lbs) | C Drive | D | L | Free Speed (RPM) | Weight (lbs) |
|---|---|---|---|---|---|---|
| TBT-002 | 60–150 | 3/4″ | 2″ | 9-1/3″ | 15 | 5 |
| TBT-007 | 130–520 | 3/4″ | 2″ | 10″ | 7 | 6.1 |
| TBT-016 | 260–1,200 | 1″ | 3″ | 11-1/2″ | 5 | 10.8 |
| TBT-020 | 335–1,500 | 1″ | 3″ | 11-1/2″ | 4.5 | 10.8 |
| TBT-025 | 450–1,875 | 1″ | 3-1/2″ | 14-1/6″ | 3.5 | 15.1 |
| TBT-040 | 700–3,000 | 1″ | 3-1/2″ | 15″ | 2.5 | 16.3 |
| TBT-080 | 1,500–6,000 | 1-1/2″ | 5″ | 16-1/2″ | 1.5 | 32 |
| TBT-100 | 1,850–7,500 | 1-1/2″ | 5″ | 16-1/2″ | 1.5 | 32.3 |
| TBT-150 | 2,950–11,050 | 2.5″ | 6-1/2″ | 12-1/2″ | 0.5 | 94.8 |
| TBT-200 | 3,700–14,750 | 2.5″ | 6-1/2″ | 12-1/2″ | 0.4 | 99.2 |
Tell us about your application and torque range, and our team will help you find the right configuration.
Contact Our Team
